How to Choose Rockwool Insulation: Density, Thickness, Price and Installation for Industrial Plants
When a plant asks us for “Rockwool insulation”, the first question the Centrotec team asks back is never “how many rolls?” — it is “what is it for, what temperature, and do you need heat control or sound control?” Two Rockwool products that look identical on a web page can differ several times over in both performance and price. The variables are density, thickness and product form.
This article is a practical specification guide to Rockwool insulation for plant engineers, maintenance teams and contractors who actually have to place the order and install the material — not just understand what Rockwool is.
What is Rockwool insulation? A quick recap before the specs
Rockwool insulation — also called stone wool or mineral wool — is made from basalt rock and natural minerals, melted at around 1,500 °C, spun into fine fibres, then formed into rolls, boards or pipe sections. The properties that make industrial plants choose it are:
Non-combustible — classified as Euroclass A1 under EN 13501-1, and it does not release toxic smoke in a fire.
High temperature resistance — the fibres melt above 1,000 °C, while continuous service temperature depends on the grade and binder, typically around 650 °C for industrial products.
Low thermal conductivity — generally about 0.033–0.040 W/m·K at room temperature.
Good sound absorption — the open fibrous structure absorbs sound waves, so one material handles both thermal and acoustic duty.
Water repellent yet vapour permeable — it sheds liquid water but lets moisture vapour escape, reducing trapped condensation.
Not asbestos — and it provides no food source for mould, fungi or insects.
For wider background on selecting insulation, see Choosing Thermal Insulation for Industrial Applications and Understanding Hot and Cold Insulation.
Three numbers to check every time you order Rockwool insulation
1. Density (kg/m³)
Density is the heart of specifying Rockwool insulation. It determines compressive strength, dimensional stability under sustained heat, and acoustic performance. Commercially available Rockwool ranges from roughly 40 to 200 kg/m³.
The simple rule: the higher the temperature, the more vibration, or the more load the insulation must carry, the higher the density you need. Specify too low and the material will slump within months, opening a void along the top of the pipe or vessel — and heat will escape straight through that gap.
2. Thickness (mm)
Thickness controls how much heat gets through. The usual industrial benchmark is to keep the outer surface temperature of the insulation below roughly 60 °C for operator safety. The hotter the medium inside, the more thickness you need.
Common thicknesses are 25, 50, 75 and 100 mm. High-temperature steam lines are often insulated in two layers (double layer) with staggered joints, so the seams of one layer are covered by the other and no thermal bridge is left at the joint.
3. Maximum service temperature
This figure comes from the datasheet of the specific grade. Do not substitute the fibre melting point for it — the binder inside the insulation starts to break down at a far lower temperature. Specifying a grade that is not rated high enough leads to burning odours, slumping and premature failure.
Tip from the field: always specify as “density × thickness × service temperature” — for example, Rockwool 100 kg/m³, 50 mm thick, rated to 650 °C — instead of simply ordering “one roll of Rockwool”. That single habit eliminates almost every wrong-material delivery.

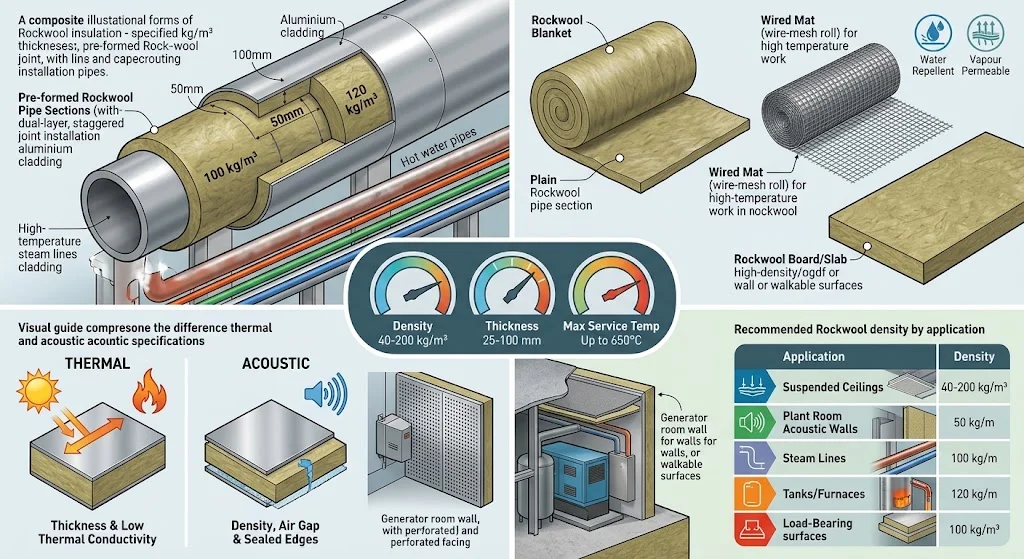

Recommended Rockwool density by application
Application | Recommended density | Common product form | |
|---|---|---|---|
Suspended ceilings / lightweight interior walls | 40–60 kg/m³ | Blanket (roll) with foil facing | |
Acoustic walls for plant rooms / meeting rooms | 60–80 kg/m³ | Board (slab) | |
Factory walls & roofs / HVAC ductwork | 80–100 kg/m³ | Board or Blanket | |
Steam lines, hot water and chilled water pipes | 100–120 kg/m³ | Pipe Section (pre-formed) | |
Tanks, furnaces, boilers, high-temperature work | 100–160 kg/m³ | Wired Mat (wire-mesh roll) | |
Load-bearing surfaces / walkable insulation | 150–200 kg/m³ | High-density Board |
This table is a starting point drawn from real installation work. The optimum figure still depends on service temperature, pipe size, site conditions and project budget. Always confirm against the datasheet of the grade you intend to use, and review the design with your insulation contractor before placing the order.
Rockwool product forms used in industrial work
Blanket (roll) — flexible and easy to wrap around irregular surfaces; suited to walls, roofs and uneven substrates.
Wired Mat (wire-mesh roll) — stitched to stainless or galvanised wire mesh so it holds its shape on large pipes, tanks and high-temperature furnaces.
Board / Slab — rigid and load-bearing; suited to walls, rectangular ductwork and anywhere you need a flat surface before cladding.
Pipe Section — pre-formed half-shells sized to standard pipe diameters; fast to fit, with tight joints that minimise heat loss.
Faced products — aluminium foil or FSK facing adds a vapour barrier for chilled-water lines and provides additional radiant heat reflection.
See product details on our Rockwool Insulation page, and outer finishing work on the Insulation & Cladding page.
Thermal Rockwool vs acoustic Rockwool: what actually changes
Rockwool insulation does both jobs in one material, but the best specification for each is not the same.
Thermal work prioritises low thermal conductivity and adequate thickness; density is chosen mainly so the material stays dimensionally stable at the service temperature.
Acoustic work prioritises density in the 60–100 kg/m³ band, combined with an air gap and thoroughly sealed edges — sound leaks through small openings far more readily than heat does.
When you need both at once — generator rooms or compressor rooms, for example — around 80–100 kg/m³ backed by a perforated facing sheet is the usual arrangement.
For acoustic projects specifically, see Safe’n’Silence Rockwool sound insulation and Sound Proof Insulation & installation.
What drives the price of Rockwool insulation?
Quotes for what looks like the same Rockwool product often differ substantially between suppliers. These are usually the reasons why:
Density (kg/m³) — the main driver, because the material is effectively sold by weight. At equal thickness, 100 kg/m³ contains nearly twice the material of 60 kg/m³.
Thickness — more material per square metre, and high-temperature work may require multiple layers.
Product form — Pipe Sections and Wired Mat carry higher forming costs than plain rolls.
Facing material — aluminium foil, stainless wire mesh or glass cloth all change the per-square-metre rate.
External cladding — aluminium or stainless sheet, including the fabrication of elbows and valve covers.
Labour and site difficulty — working at height, in confined spaces, or while the plant is still running.
Order quantity and delivery lead time.
Never compare prices “per roll” or “per board”. Convert everything to a price per square metre at the same density and thickness first — you will often find that the cheaper-looking option is actually the more expensive one.
Five mistakes that stop Rockwool insulation from paying for itself
Specifying too low a density for high-temperature service. The insulation slumps, a void opens along the top of the pipe, and heat escapes straight through it.
Insufficient thickness. Measure the outer surface and it is still well above 60 °C — an operator burn risk and a continuous energy loss.
No vapour barrier on chilled-water lines. Moisture condenses inside the insulation, the material becomes saturated, performance disappears, and corrosion under insulation (CUI) develops unseen.
No external cladding. Sun, rain, dust and foot traffic degrade exposed insulation many times faster than it should.
Leaving valves, flanges and fittings bare. One large uninsulated valve can lose as much heat as several metres of bare pipe.
For valves and flanges that need regular access, use a Removable Insulation Jacket — it closes the heat-loss gap while still allowing maintenance to be carried out quickly.
Frequently asked questions about Rockwool insulation
What is the difference between Rockwool insulation and fiberglass?
Both are fibrous insulation materials, but Rockwool is made from volcanic basalt rock, so it withstands higher temperatures, holds its shape better under continuous heat, and — being denser — absorbs sound better at the same thickness. Fiberglass is lighter and cheaper per unit, which makes it a reasonable choice for lower-temperature applications.
What temperature can Rockwool insulation withstand?
Rockwool fibres have a melting point above 1,000 °C, but the real continuous service temperature is lower because it depends on the binder and the product form. Industrial products typically run up to around 650 °C. Always confirm the figure on the datasheet for the exact grade you are buying. If you need to go higher than that, consider Ceramic Fiber instead.
Does Rockwool really work for soundproofing, and what density is needed?
Yes. Its open fibrous structure absorbs sound energy effectively. General acoustic work typically uses 60–100 kg/m³, combined with an air gap and properly sealed edges — even a small gap will noticeably reduce acoustic performance.
Is Rockwool insulation dangerous like asbestos?
No — they are not the same material. Rockwool is a manufactured volcanic stone wool with a different fibre structure from natural asbestos. That said, during cutting and installation you should still wear gloves, a mask and safety glasses to avoid irritation from fibre dust, as with any mineral fibre product.
How is the price of Rockwool insulation calculated?
Price depends on density, thickness, product form, facing material and installation labour, so there is no single list price. The most accurate approach is to share the application, service temperature, pipe size or surface area, and approximate quantity — then we can quote a per-square-metre price including installation that matches the real site conditions.
How long does Rockwool insulation last?
With the right specification, proper installation and outer cladding to protect it from water and impact, Rockwool insulation can last for decades with very little loss of performance. What usually shortens its life is not the material itself but moisture ingress and substandard installation.
Conclusion: specify Rockwool from the application, not from the price list
Rockwool insulation delivers excellent value when it is specified correctly, because a single material provides thermal control, acoustic control and fire safety at once. The key is to state density, thickness and service temperature to match the real application — then finish the job with proper installation and cladding.
Centrotec imports and installs Rockwool insulation for factories, buildings and industrial projects of every kind, backed by more than 20 years of experience and a dedicated installation team. We can survey your site, select the right specification, and quote a supply-and-install price.
